1000BASE DFB Laser Fiber Optic SFP Module 60KM Distance 1490/1550nm BIDI SM
Applications
Router/Server interface
Switch to Switch interface
Switched backplane applications
Fiber Channel
Other optical transmission systems
PRODUCT DESCRIPTION
SFP transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 60km transmission distance with SMF.The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Transceivers are a high performance, cost effective module which have a single LC optics interface. They are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA) and Digital diagnostics functions are available via the 2-wire serial bus specified in SFF-8472. The receiver section uses a PIN receiver and the transmitter uses a 1490 nm DFB laser, up to 24dB link budge ensure this module 1000Base-LX Ethernet 60km application.
1.25Gbps SFP BIDI Optical Transceiver Module is small form factor pluggable module for bi-directional serial optical data communications such as STM-8, OC-24,Fiber Channel, It is SFP 20-pin connector to allow hot plug capability.
PRODUCT FEATURES
1310nm FP laser and PIN photodetector for 20km transmission
Compliant with SFP MSA and SFF-8472 with simplex LC receptacle
Digital Diagnostic Monitoring:
Internal Calibration or External Calibration
Compatible with SONET OC-24-LR-1
+3.3V single power supply
Operating case temperature:
Commercial : 0 to +70°C
Industrial : -40 to +85°C
Data-rate of 1.25Gbps/1.063Gbps operation
Specification of Transmitter
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Note |
| Average Output Power | POUT | -2 | | 2 | dBm | Note (1) |
| Extinction Ratio | ER | 8.2 | | | dB | |
| Center Wavelength | λC | 1483 | 1490 | 1495 | nm | DFB Laser |
| Side Mode Suppression Ratio | SMSR | 30 | | | dB |
| Spectrum Bandwidth(-20dB) | σ | | | 1 | nm | |
| Differential Line Input Impedance | RIN | 90 | 100 | 110 | Ohm | |
| Output Eye Mask | Compliant with G.959(class 1 laser safety) | | Note (2) |
Note (1): Measure at 2^23-1 NRZ PRBS pattern
Note (2): Transmitter eye mask definition
Specification of Receiver
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Note |
| Input Optical Wavelength | λIN | 1500 | 1550 | 1580 | nm | |
| Receiver Sensitivity | PIN | | | -26 | dBm | Note (1) |
| Los Of Signal Assert | PA | | | -35 | dBm | |
| Los Of Signal De-assert | PD | -28 | | | dBm | Note (2) |
| LOS Hysteresis | PA-PD | 0.5 | 2 | 6 | dB | |
| Receiver Overload | Pmax -PIN | | | -3 | dBm | |
Note (1): Measured with Light source 1550nm, ER=8.2dB; BER =<10^-12 @PRBS=2^23-1 NRZ
Note (2): When LOS de-asserted, the RX data+/- output is High-level (fixed)
Recommended Operating Conditions
| Parameter | Symbol | Unit | Min | Typ | Max |
| Storage Temperature Range | Ts | ℃ | 0 | | 70 |
| Power Supply Voltage | Vcc | V | 3.135 | | 3.465 |
| Data Rate | | Gb/s | - | 1.25 | - |
Product Tags:
|
|

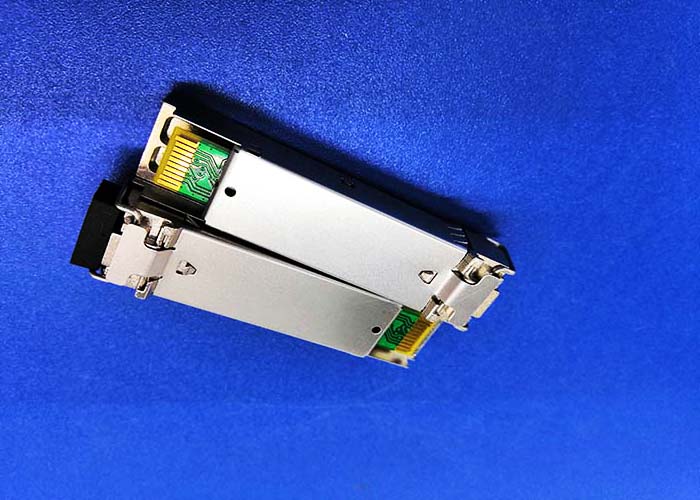

1000BASE DFB Laser Module 60KM Distance 1490/1550nm BIDI SFP Module Images
|
