100GBASE-SR10 CFP Optical Module 850nm Multimode Fiber Transceiver 100m

Brand Name : OE

Model Number : CFP 100G 850 SR10

Certification : ISO9001

Place of Origin : China

MOQ : 1pcs

Price : Negotiate

Payment Terms : T/T

Supply Ability : 500PCS/month

Delivery Time : 5-8 work days

Packaging Details : Carton

Wavelength : 850nm

Distance : 100M

Power Supply : +3.3V

Rate : 100Gbps

DDM : With

Form Factor : CFP

Connector : MPO/MTP

Cable Type : MMF

Contact Now

100GBASE-SR10 CFP Optical Module 850nm Multimode Fiber Transceiver 100m

Applications

Switches, Routers
Data Centers

PRODUCT FEATURES

Transmission data rate up to 11.2Gbit/s per channel
CFP MSA compliant
Hot pluggable electrical interface
Differential AC-coupled high speed data interface
10 channels 850nm VCSEL array
10 channels PIN photo detector array
Multi-mode ribbon cable of up to 100m
Management Interface and digital diagnostic monitoring through MDIO
With TX/RX monitors per lane
Power class 1 (<8W max)
Operating case temperature 0°C to +70°C
3.3V power supply voltage
RoHS 6 compliant

PRODUCT DESCRIPTION

The 100GBASE-SR10 CFP module supports link lengths of up to 100m and 150m, respectively, over laser-optimized OM3 and OM4 multimode fiber cables. It enables high-bandwidth 100 Gigabit Ethernet optical links over ribbon fiber cables terminated with female MPO/MTP 24-fiber connectors.

General

Device Type	CFP transceiver module
Enclosure Type	Plug-in module
Approximate Width	3.2 in
Approximate Depth	5.7 in
Approximate Height	0.6 in
Approximate Weight	10.6 oz

Networking

Connectivity Technology	Wired
Cabling Type	100GBase-SR10
Data Link Protocol	100 Gigabit Ethernet
Data Transfer Rate	100 Gbps
Optical Wave Length	850 nm
Max Transfer Distance	100m
Features	Digital Optical Monitoring (DOM) support
Compliant Standards	IEEE 802.3ba

Expansion / Connectivity

Interfaces	Differential AC-Coupled high speed data interface
Compatible Slots	1 x CFP

Miscellaneous

Compliant Standards

Laser Class 1, FCC CFR21 Part 1040, IEC 60825-1, GR-326-CORE

Product Tags:

multimode fiber transceiver

single mode fiber transceiver

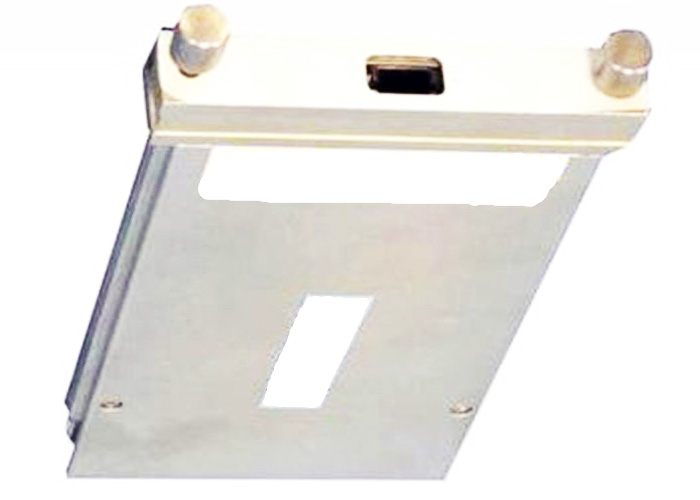

100GBASE-SR10 CFP Optical Module 850nm Multimode Fiber Transceiver 100m Images
